M08D
Main & Center

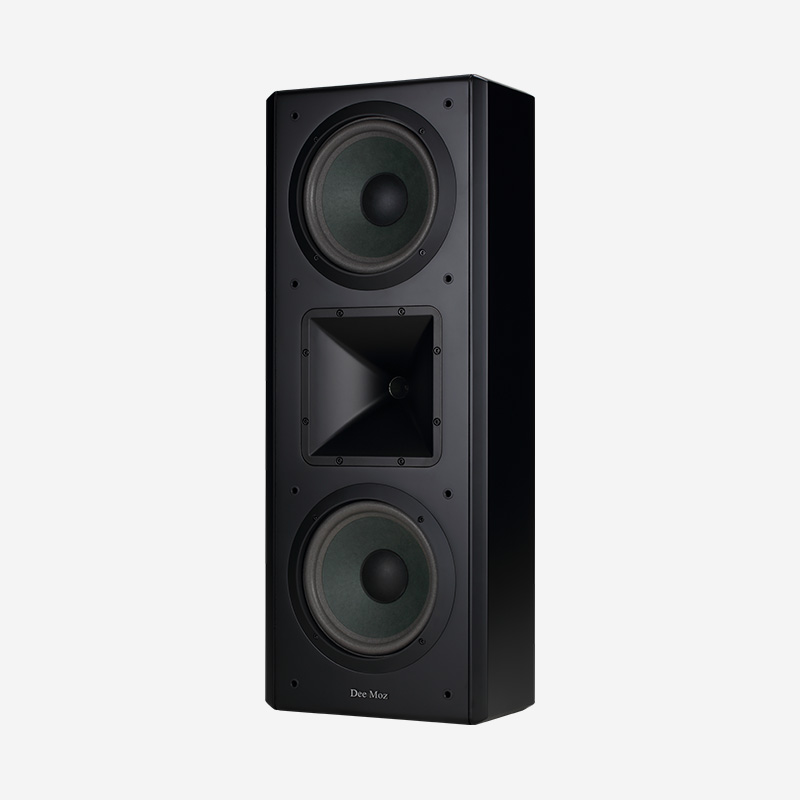

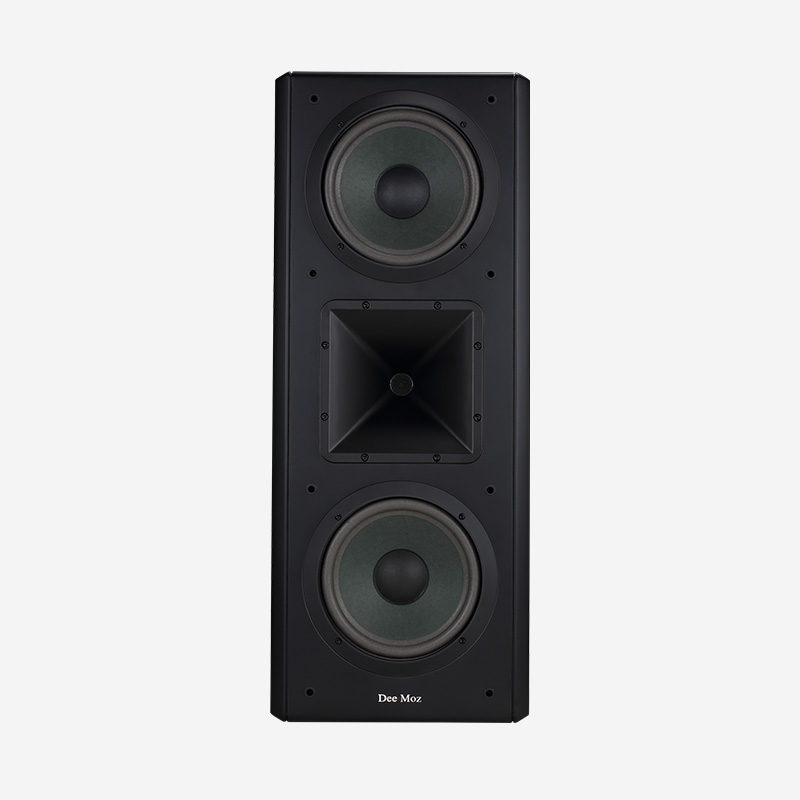

This shallow “MTM” design features our generous 8” or massive 10” woofers flanking a proprietary titanium tweeter with cast alloy horn.

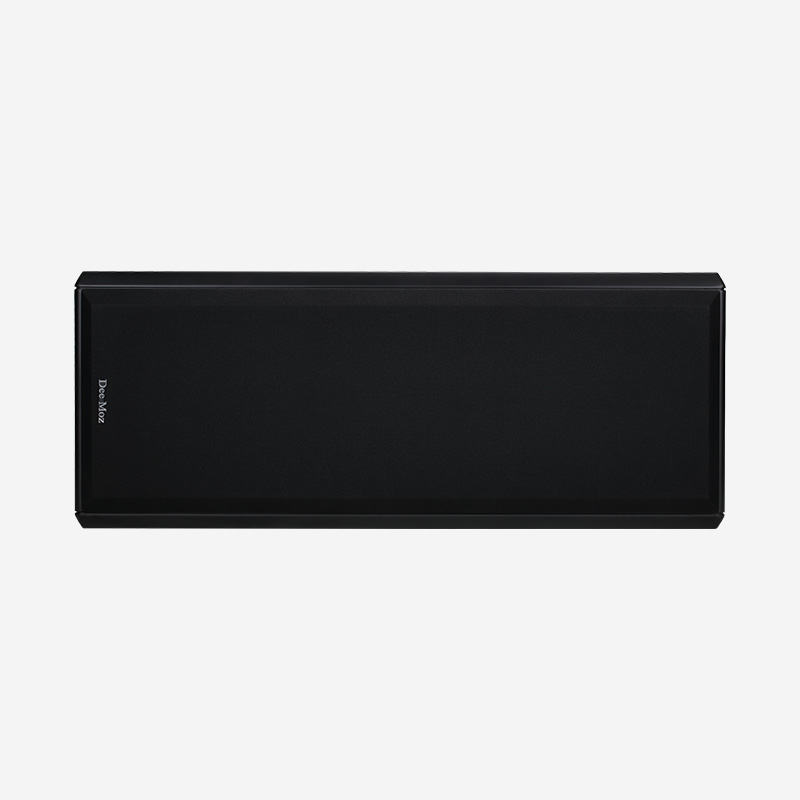

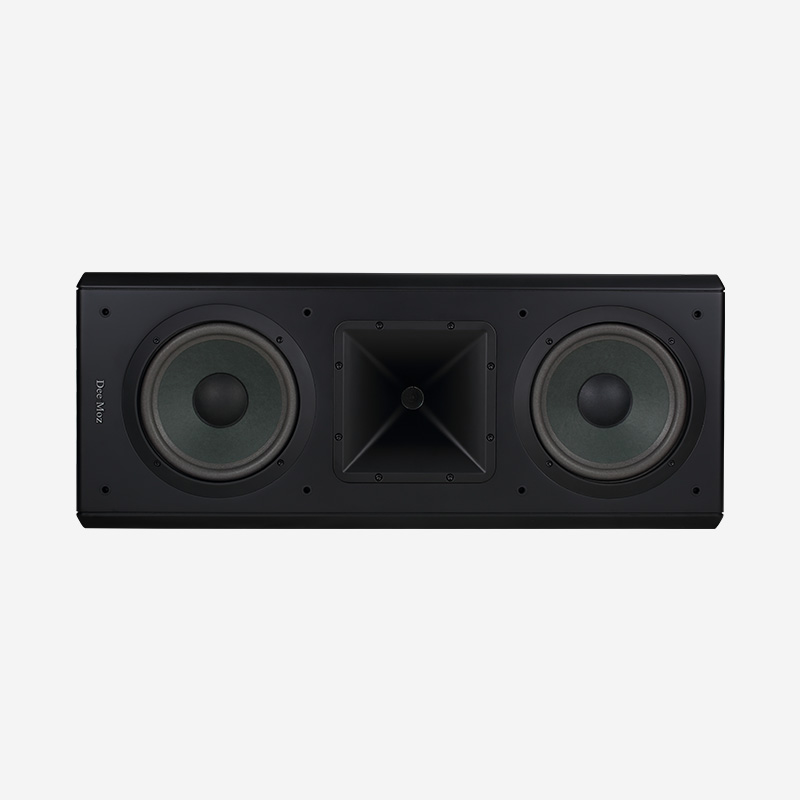

The M-08D and M-10D are placed vertically for the most precise imaging, or horizontally for a pro-class center channel barely thicker than a common “sound bar”.
| Design | 2-way |
| Tweeter (throat size) | 34 mm |
| Midrange/woofer | 2 x 8" woofer |
| Frequency range ±3dB | 53 - 20k Hz |
| Sensitivity | 88 dB |
| Impedance | 4 ohm |
| Maximum power | 175 W |
| Recommended amplifier power | 120 W |
| Dimensions (H x W x D) | 729 x 289 x 150 mm |
| Net weight | 14.5 kg |

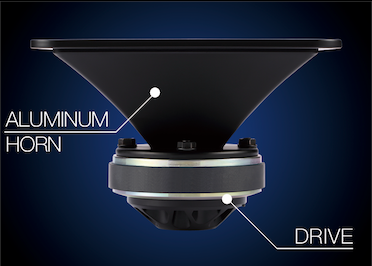

ADEFINING PART IN ANY SPEAKER:
Seeour custom, machined alloy wave guide. Behind that, a massive, titanium tweeter diaphragm that’s efficient, clean and very powerful. Of course imaging and timbre matching is assured in each location using DM Mid-Series Speakers.
HIGN-TECH WOOD?
Acoustical engineers know, natural wood fibers are still among the most complex materials a designer can use.

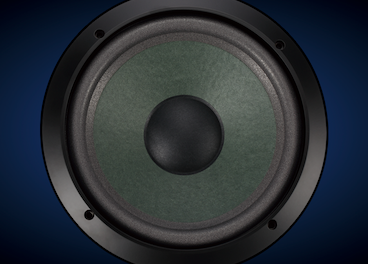

Our 8” and 10” woofers use carefully blended pulp cones, slow-dried for ideal damping and light weight. American synthetic surrounds and CNC’dblack – anodized aluminum bezels all work in perfect harmony.
