PS18
A subwoofer that satisfies both the sense of listening and motion.

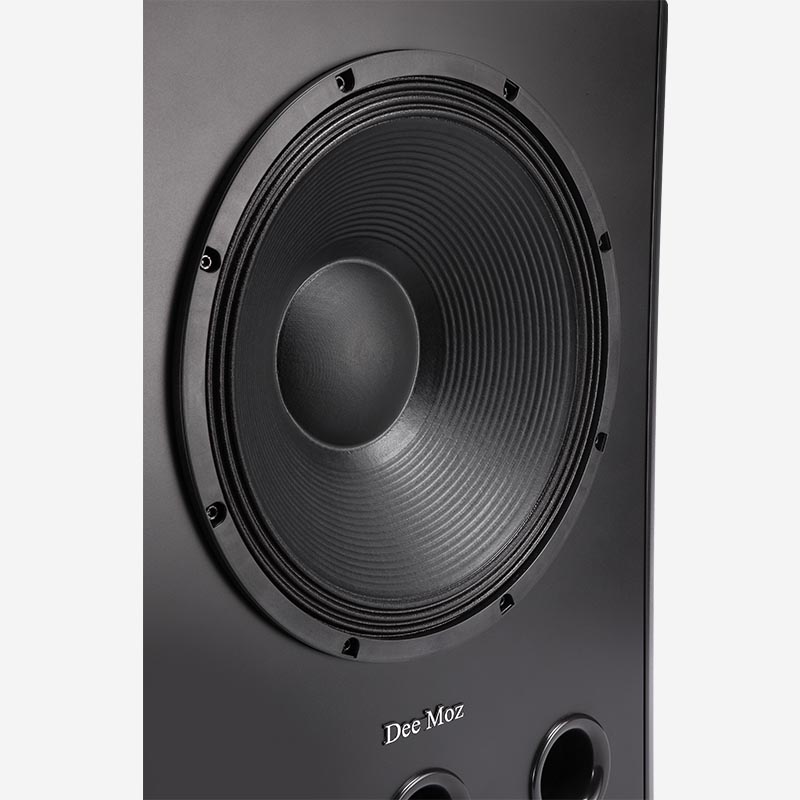

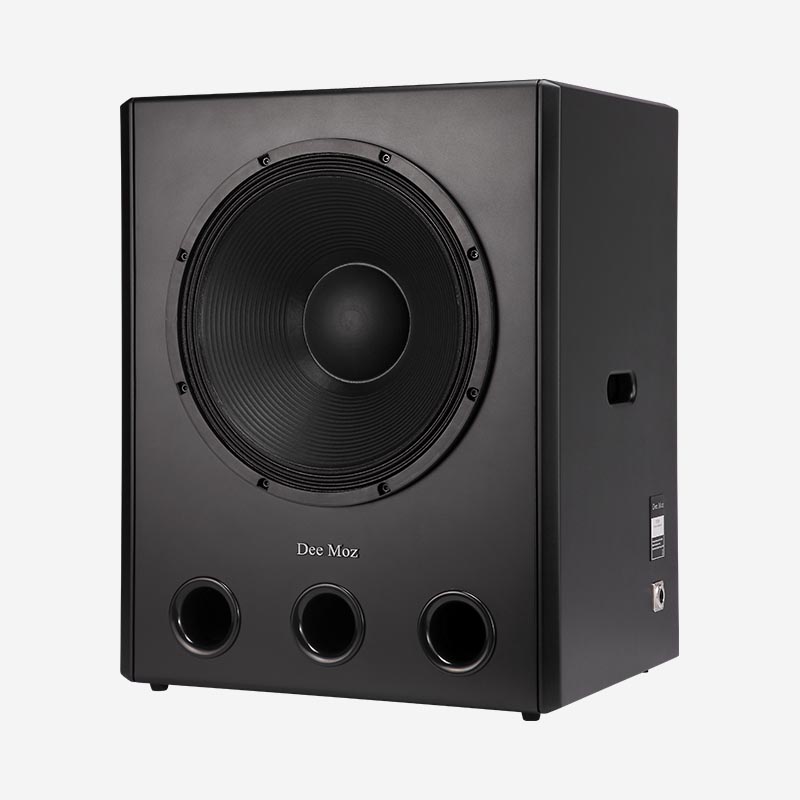

1. The passive 18-inch powerful subwoofer can withstand 1000W power for a long time play.
2. Using Speak On input, a safer and more efficient connection.
3. The depth of cabinet is only 48cm, combined with the lead phase design of three ports, it is easy for invisible installation.
4. Matching the development of Dee Moz Mid-series cinema products to achieve a more shocking cinema effect.
| Model | PS18 |
| Subwoofer | 1×18" Woofer |
| Frequency range ±3dB | 38 - 1000 Hz |
| Sensitivity | 97 dB |
| Impedance | 8 Ω |
| Maximum power | 1000 W |
| Input | SpeakOn™ connector |
| Dimensions (Height x Width x Depth) | 773 × 620 × 481 mm |
Passive Subwoofer

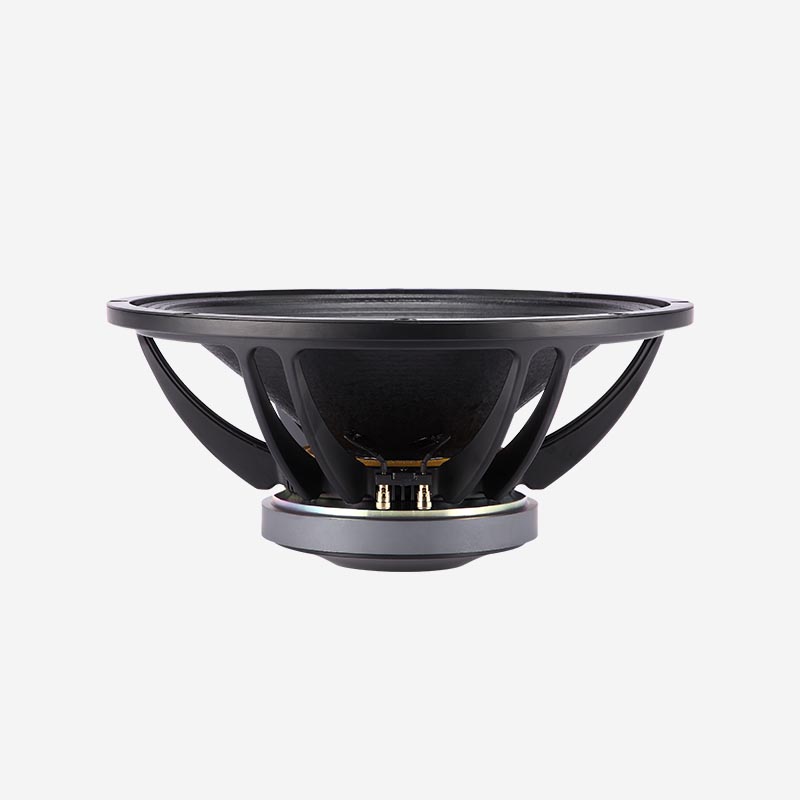

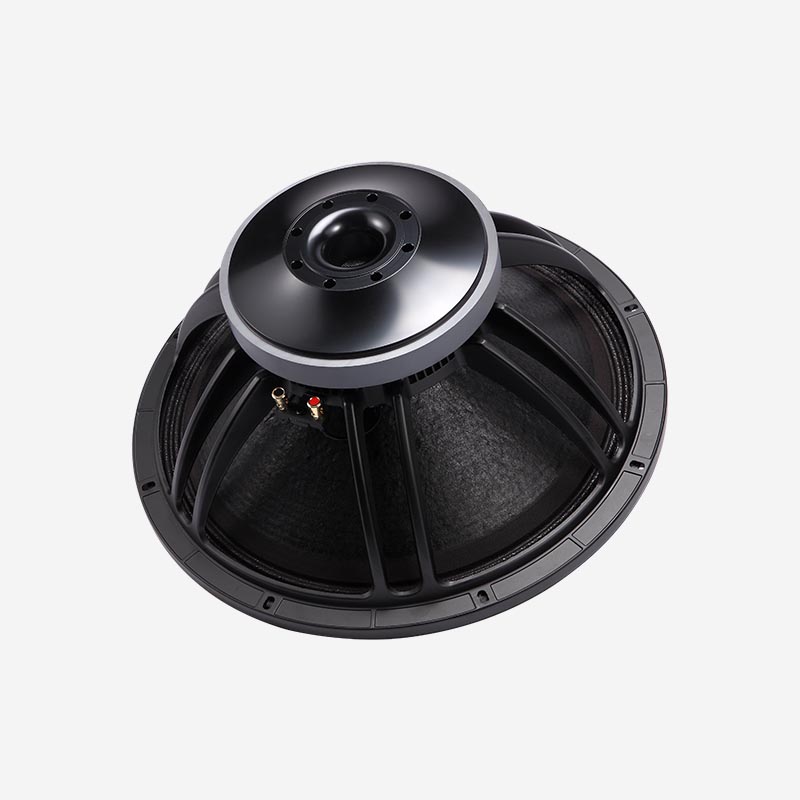

1. The 100-core high-power voice coil with internal and external winding structure can withstand strong power for a long time play;
2. Built-in aluminum ring for magnetic circuit to control linear distortion;
3. Double spider silicone bonding, better fatigue resistance, and better damping of silicone;
4. The use of die-cast aluminum frame and magnetic circuit with heat dissipation holes increases the power and stability of the voice coil;
5. Special high-efficiency cellulose paper cone, high sensitivity. Waterproof and moisture-proof treatment to reduce the impact of environmental climate on sound;
6. Pure copper gold-plated integrated terminal, no solder tabs, mesons and screws, only one solder joint, reducing the loss of signal, reducing impedance and increasing stability.
