Specifications
Model | V12 |
XO / Configuration | 3-way Main Speaker |
Tweeter (throat size) | 50.8 mm |
Midrange/woofer | 1×6.5"midrange /1×12" woofer |
Frequency range ±3dB | 55 - 18k Hz |
Sensitivity | 99dB |
Impedance | 8 Ω |
Maximum power | 300W |
Dimensions (height×width×depth) | 1459×483×300 mm |
V-Series elements

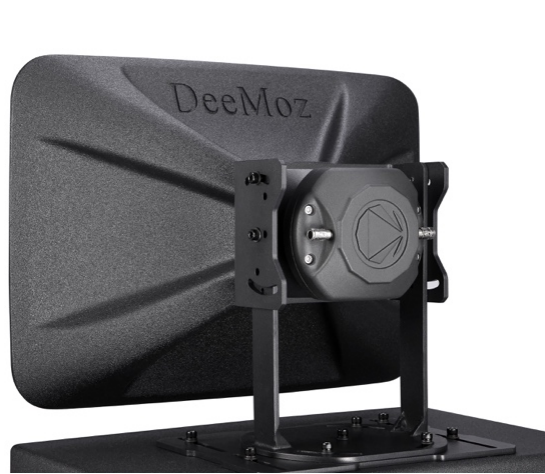

- Precision Devices (PD) UK CD2N neo compression HF driver w. Ti diaphragm
- DM-Audio cast resin proprietary horn for optimal tweeter HF dispersion
- Fane UK Neo motor, high-linearity 6.5” midrange, horn loaded alignment
- PD 12” woofer w. radial neo motor, 3” VC and vented heat-sink
