Specifications

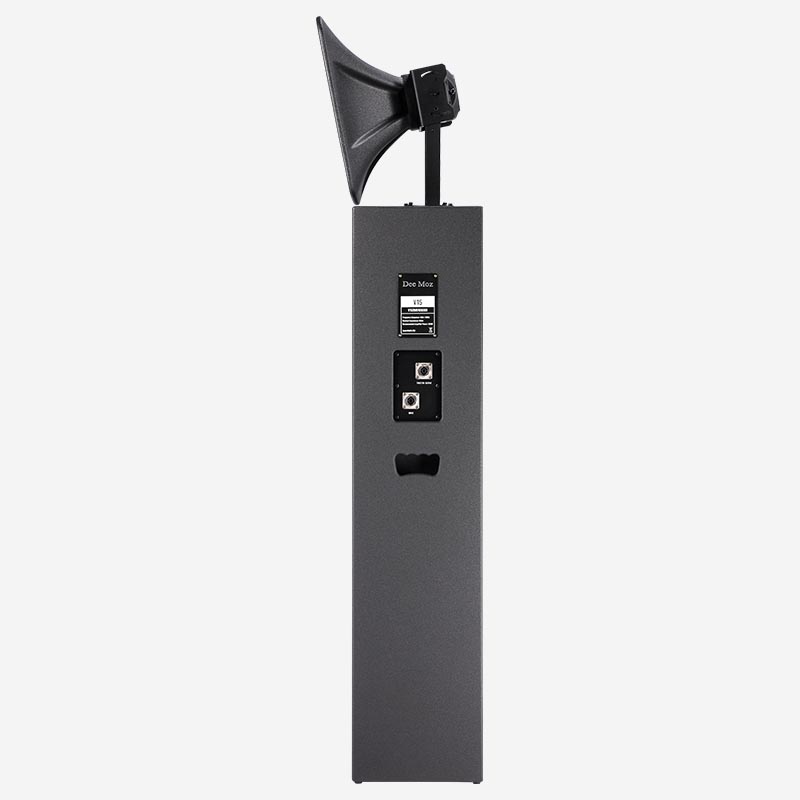

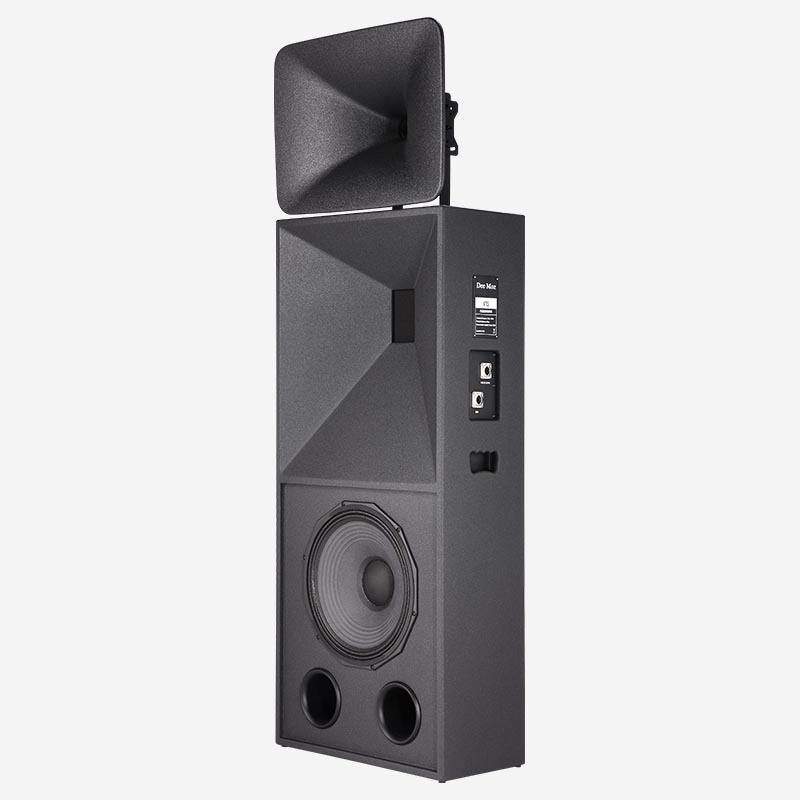

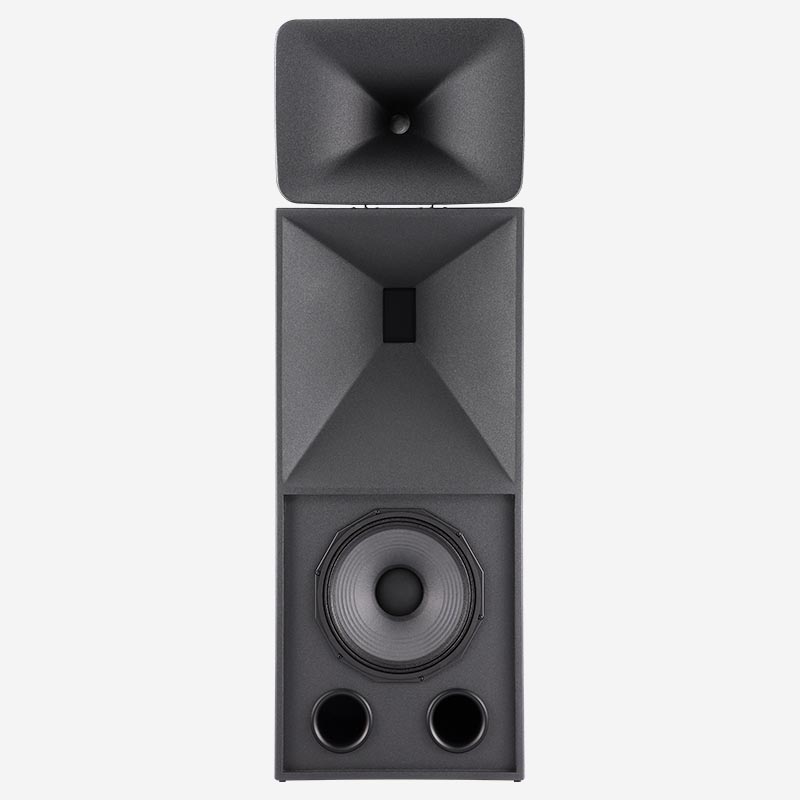

Model | V15 |
XO / Configuration | 3-way Main Speaker |
Tweeter (throat size) | 50.8 mm |
Midrange/woofer | 1×6.5"midrange /1×15" woofer |
Frequency range ±3dB | 45 - 18k Hz |
Sensitivity | 99.5dB |
Impedance | 8 Ω |
Maximum power | 500W |
Dimensions (height×width×depth) | 1740×580×300 mm |
V-Series elements
- Precision Devices (PD) UK CD2N neo compression HF driver w. Ti diaphragm

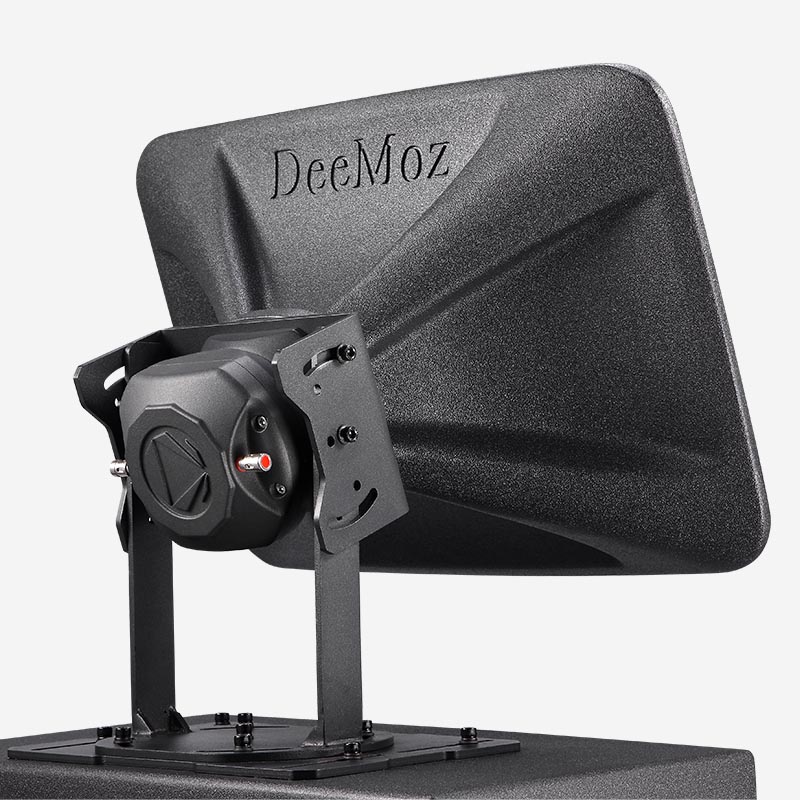

- DM-Audio cast resin proprietary horn for optimal tweeter HF dispersion
- Fane UK Neo motor, high-linearity 6.5” midrange, horn loaded alignment

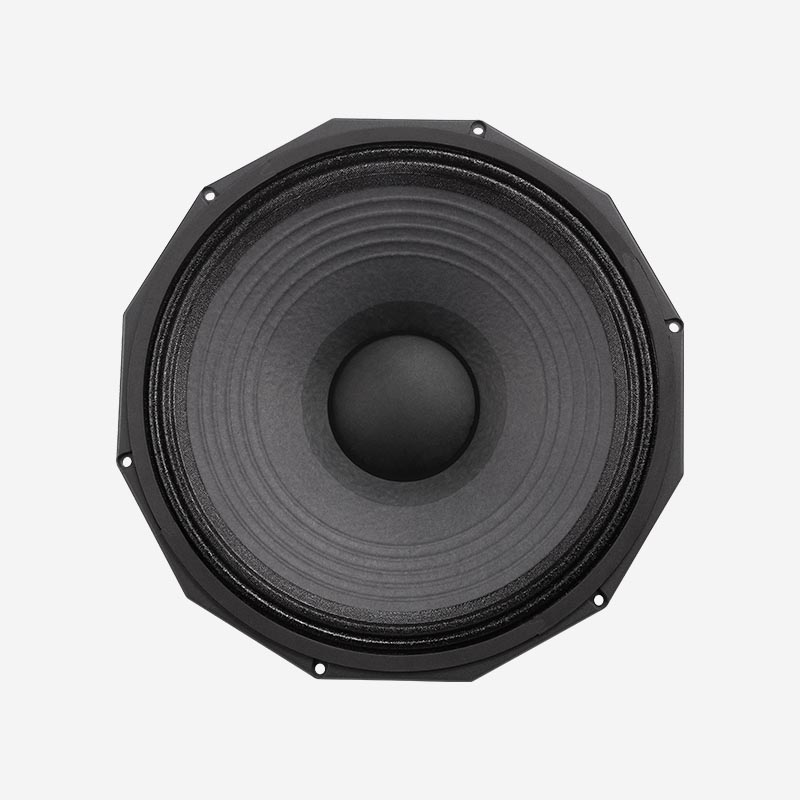

- PD 153NR1 15” woofer w. radial neo motor, 3” VC and vented heat-sink
