Specifications

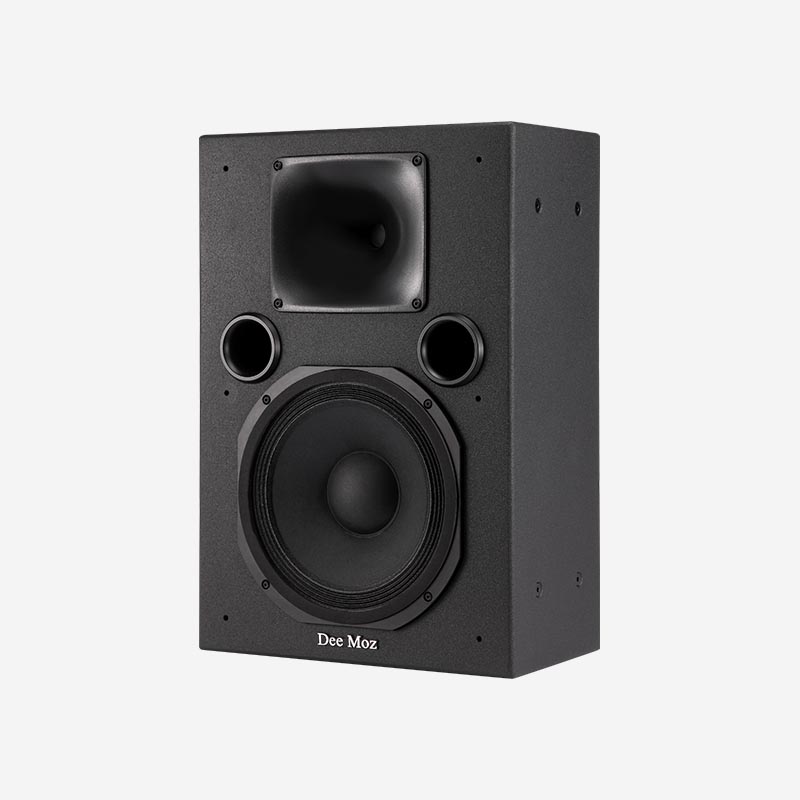

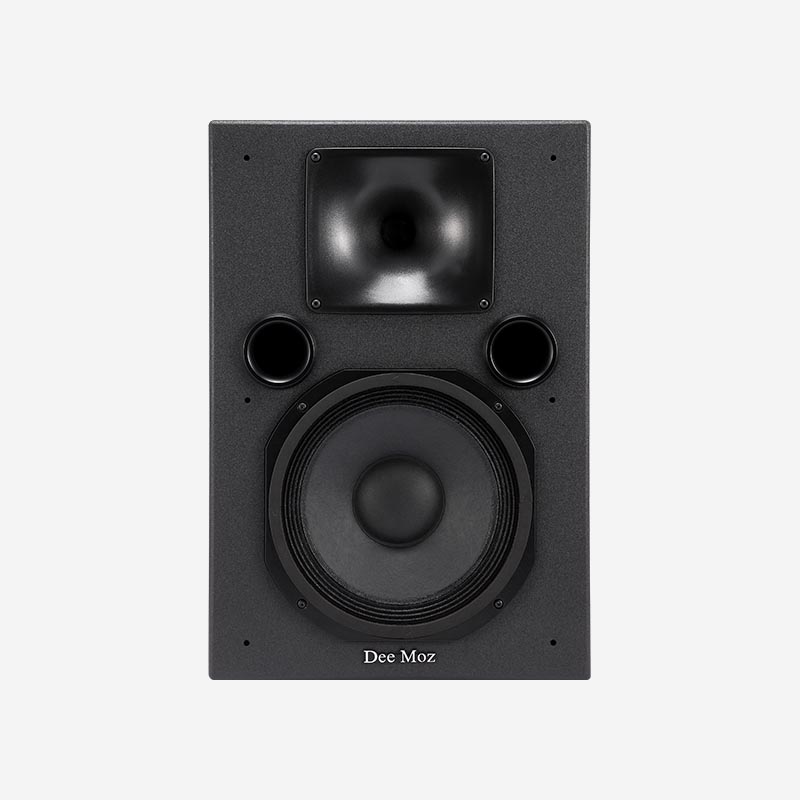

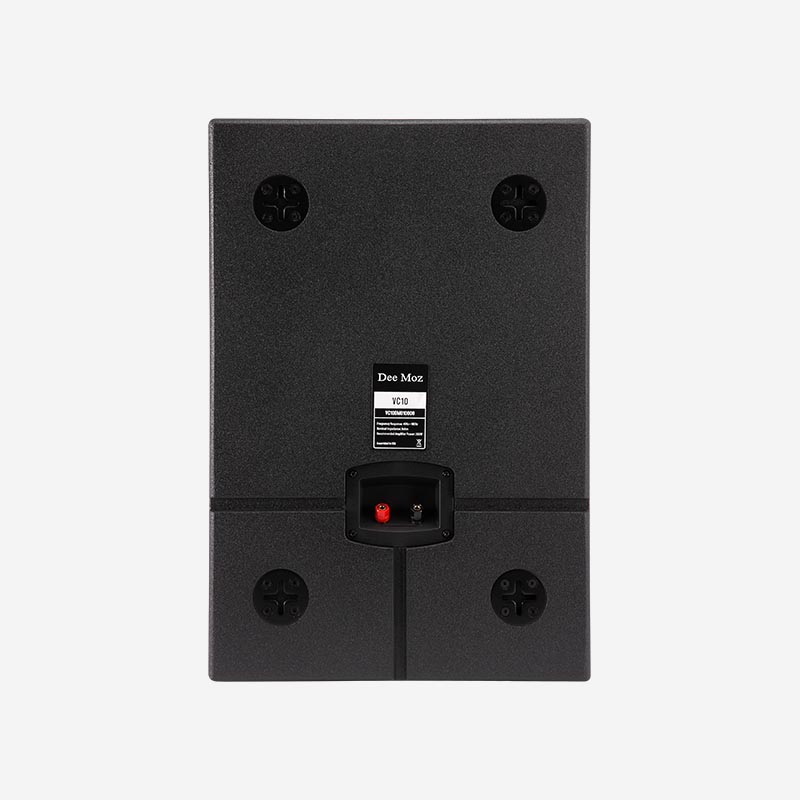

Model | VC10 |
XO / Configuration | 2-way Ceiling/Compact Main Speaker |
Tweeter (throat size) | 25.4 mm |
Midrange/woofer | 1×10" woofer |
Frequency range ±3dB | 45 - 18k Hz |
Sensitivity | 98dB |
Impedance | 8 Ω |
Maximum power | 300W |
Dimensions (height×width×depth) | 545×372×215 mm |
VC10 Speaker elements
- Fane UK CD140 HF compression driver w. Ti diaphragm, ferrofluid cooled.

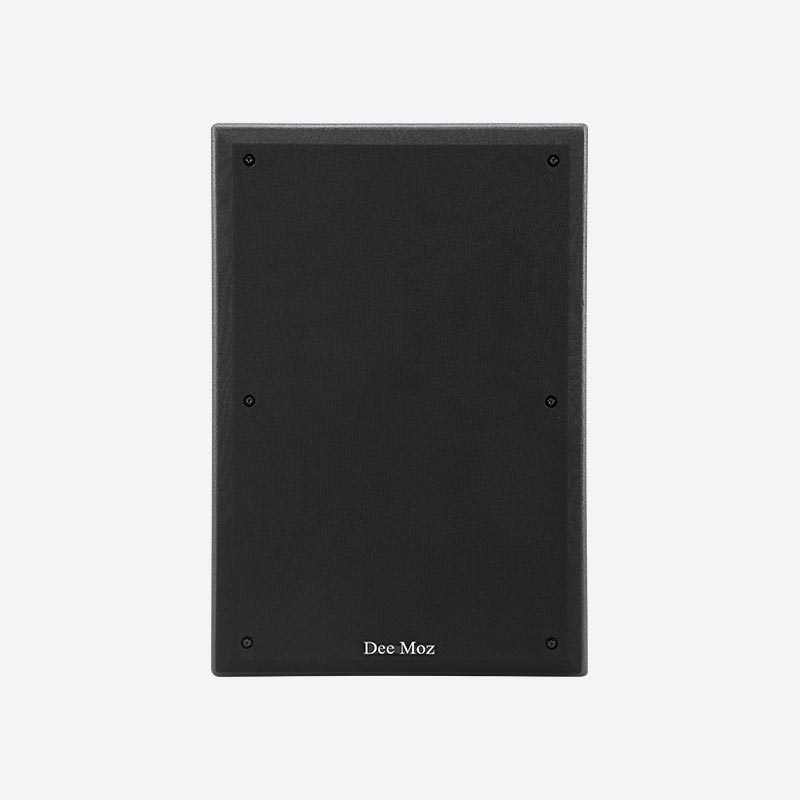

- DM Pro-Cinema low-profile fabric grill for on-wall/on-ceiling installs. Threaded retainers.

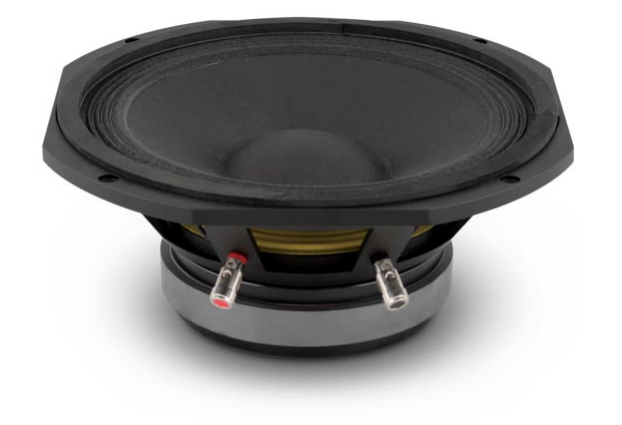

- The VC10 uses the Fane Sovereign Pro 10-300 10” woofer a.
